Dewalt has come out with a new cordless 20V brushless Atomic multi-head drill driver with 4 interchangeable heads. Let’s check it out below.
If you purchase through a link on this site, we may get a share of the sale.
Dewalt 20V Brushless Atomic Multi-Head Drill Driver DCD803B

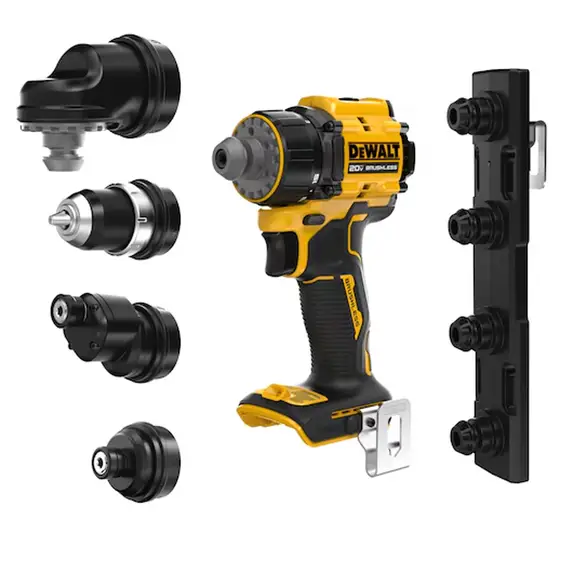

What’s great about multi-head drivers are that they have the base tool that accepts multi heads to cover a wider variety of use cases. This bad boy comes with the base driver tool and 4 additional heads that lock into place. It also comes with an organizer rail that’s wall mountable so you can store your attachment heads neatly.
Let’s take a look at all of the attachment heads below.

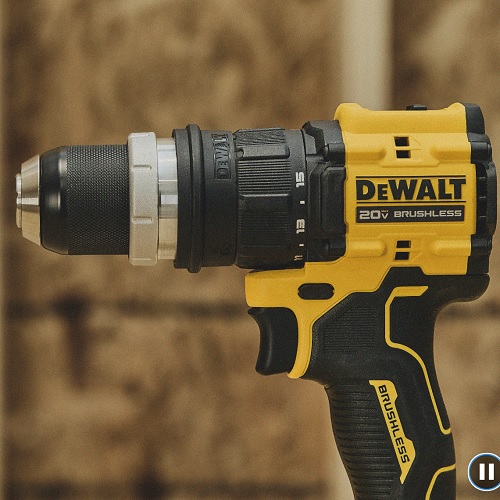

It comes with a 1/2″ metal chuck attachment to make this a 1/2″ drill. I like that they went with a metal chuck which not just makes it more premium over a plastic chuck. But it also has added durability.
Up next is the 1/4″ hex quick release attachment head. This is a similar chuck to those found on an impact driver. Though it doesn’t make it an impact driver. It adds the ability to accept and lock onto standard 1/4″ hex bits making this a great screwdriver option.

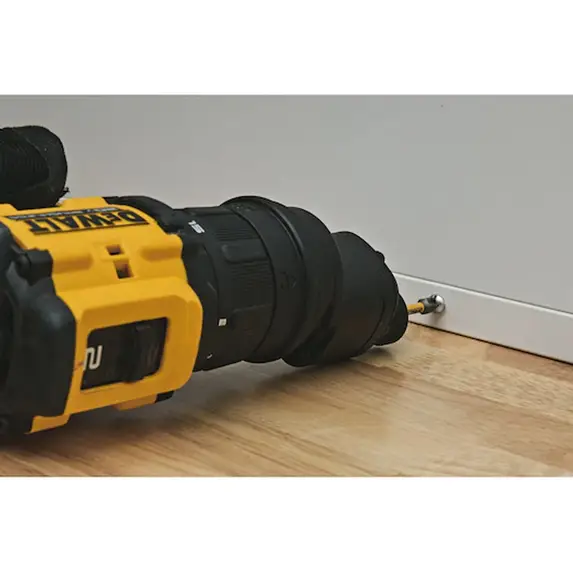

There’s also a 1/4″ hex quick release offset attachment head. The offset head allows for easy access to screws that are inside a corner, yet still need to be fastened at a right angle.

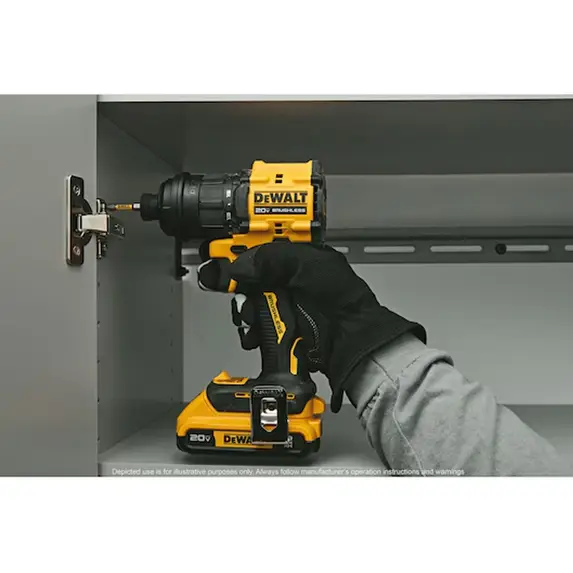

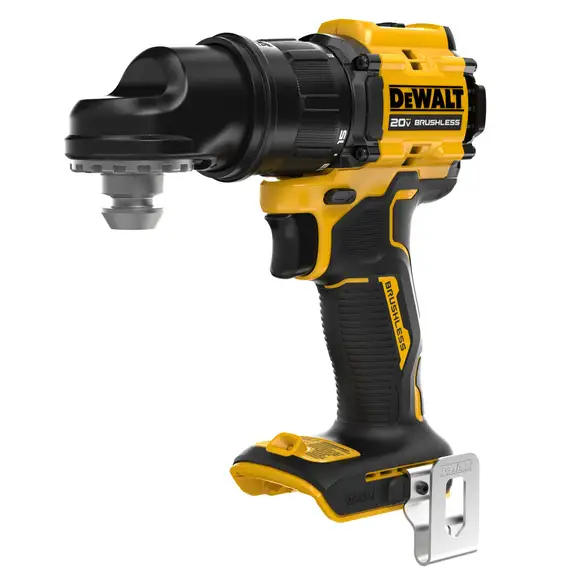

Last but definitely not least is the 1/4″ hex right angle attachment head. It lets you drill and drive at right angles. You can also rotate the attachment so it doesn’t just have to be up or down but also sideways. It has a 1/4″ hex magnetic bit holder.

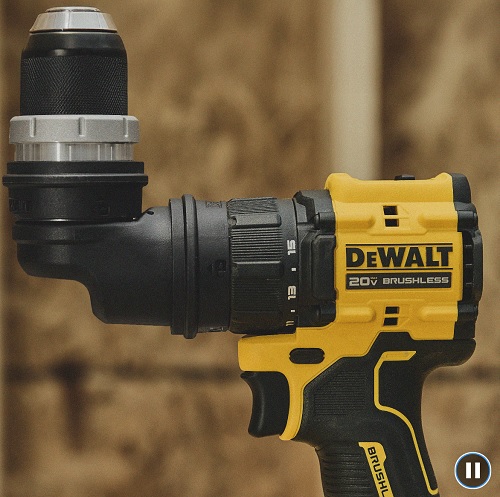

You can also stack the right angle attachment with any of the other attachment heads.
Features:

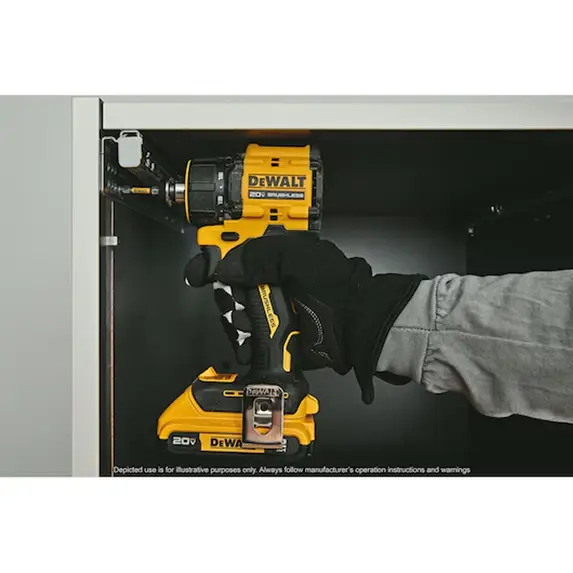

And the base tool can also be used by itself as a 1/4″ hex screwdriver. It too has a 1/4″ hex magnetic bit holder just like the right angle attachment. Use the tool by itself when you need the shortest length to fit into tighter spaces. Bits are held in place magnetically but if you need them securely locked into place, then use the 1/4″ hex quick release attachment. Though any attachment used adds to the overall length of the tool.
This multi-head tool is also part of Dewalt’s Atomic series of power tools which are their most compact tools and it also offers a brushless motor. It’s actually a pretty strong motor too and is rated at an impressive 569 MWO (Max Watts Out). Most brands use in-lbs when rating torque output for drills. However historically Dewalt in the USA has used their own method of measuring torque (for drills) with MWO or UWO (unit watts out) which is different than the in-lbs torque rating. My guess is that Dewalt didn’t want to enter into a mine is bigger than yours contest where brands continue to compete with who has the most torque and is probably why they hide their torque numbers behind MWO and UWO.
This new Dewalt 20V Atomic brushless multi-head drill driver will launch as early as mid-July 2025 and is priced at $229 as a baretool.
MNFR Features List:
- Versatile capabilities – take on a variety of applications with the included 1/2 in. (13mm) metal chuck attachment, 1/4 in. hex right angle attachment, 1/4 in. hex quick release offset attachment, and a 1/4 in. hex quick release attachment.
- Quick connection – switch between applications quickly and easily with included attachments.
- Reach tough areas – access hard-to-reach spaces with included attachments that can be individually used (one at a time) on the right angle attachment.
- Security collar – check if the attachment has been securely attached to your drill with the yellow collar around the chuck.
- Help maximize organization – mount the organizer to the wall using the keyholes or use the belt hooks provided to hang the tool or hold up to 4 attachment heads.
- Power and performance – complete tough applications in tight spaces with up to 15% more power**.
- Competitive advantage – get up to 128% more power vs. milwaukee†.
What’s Included:
- (1) DCD803 ATOMIC 20V MAX* Multi-Head Drill/Driver
- (1) 1/2″ (13mm) Metal Chuck Attachment
- (1) 1/4″ Hex Right Angle Attachment
- (1) 1/4″ Hex Quick Release Offset Attachment
- (1) 1/4″ Hex Quick Release Attachment
- (1) Organizer
- (2) Belt Hooks
